Insulation Bearings

Insulation bearings introduction

Electrically insulated bearings use a special spraying process to spray high-quality coating on the outer surface of the bearing. The coating has a strong bond with the substrate and has good insulation performance. It can avoid the electric corrosion effect of the induced current on the bearing and prevent the current from affecting the grease and rolling elements , The damage caused by the raceway improves the service life of the bearing. The process has been continuously improved. In insulated bearings, a layer of 100μm thick coating is provided on the outer ring or inner ring surface, which can withstand a voltage of up to 1000 V DC. The special spraying process can form a layer of uniform thickness, strong and uniform coating, and then undergo further processing to make it not affected by moisture and humidity.

INSOCOAT Deep Groove Ball Bearings






Principal dimensions

Basic load ratings

Fatique load limit

Speed ratings

Designation







dynamic

static



Reference speed

Limiting speed



d

D

B

C

C0

Pu







mm

kN

kN

r/min



70

150

35

111

68

2.75

9500

9000

6314 M/C3VL0241

70

150

35

111

68

2.75

9500

6300

6314/C3VL0241

75

130

25

68.9

49

2.04

10000

6700

6215/C3VL0241

75

160

37

119

76.5

3

9000

5600

6315/C3VL0241

75

160

37

119

76.5

3

9000

8000

6315 M/C3VL0241

80

170

39

130

86.5

3.25

8500

5300

6316 M/C3VL0241

80

140

26

72.8

55

2.2

9500

6000

6216/C3VL0241

80

170

39

130

86.5

3.25

8500

5300

6316/C3VL0241

85

180

41

140

96.5

3.55

8000

7500

6317 M/C3VL0241

85

180

41

140

96.5

3.55

8000

5000

6317/C3VL0241

85

150

28

87.1

64

2.5

9000

5600

6217/C3VL0241

90

160

30

101

73.5

2.8

8500

5300

6218/C3VL0241

90

190

43

151

108

3.8

7500

7000

6318 M/C3VL0241

90

190

43

151

108

3.8

7500

4800

6318/C3VL0241

95

200

45

159

118

4.15

7000

4500

6319/C3VL0241

95

170

32

114

81.5

3

8000

5000

6219 M/C3VL0241

95

170

32

114

81.5

3

8000

5000

6219/C3VL0241

95

200

45

159

118

4.15

7000

6300

6319 M/C3VL0241

100

215

47

174

140

4.75

6700

4300

6320/C3VL0241

100

180

34

127

93

3.35

7500

4800

6220/C3VL0241

100

215

47

174

140

4.75

6700

6000

6320 M/C3VL0241

110

200

38

151

118

4

6700

4300

6222 M/C3VL0241

110

240

50

203

180

5.7

6000

5300

6322 M/C3VL0241

110

240

50

203

180

5.7

6000

3800

6322/C3VL0241

110

200

38

151

118

4

6700

4300

6222/C3VL0241

120

215

40

146

118

3.9

6300

4000

6224/C3VL0241

120

260

55

208

186

5.7

5600

3400

6324/C3VL2071

120

260

55

208

186

5.7

5600

5000

6324 M/C3VL2071

130

280

58

229

216

6.3

5000

3200

6326/C3VL2071

130

280

58

229

216

6.3

5000

4500

6326 M/C3VL2071

130

230

40

156

132

4.15

5600

3600

6226/C3VL2071

140

300

62

251

245

7.1

4800

4300

6328 M/C3VL2071

140

250

42

165

150

4.55

5300

3400

6228/C3VL2071

140

300

62

251

245

7.1

4800

4300

6328/C3VL2071

150

270

45

174

166

4.9

5000

3200

6230/C3VL2071

150

320

65

276

285

7.8

4300

4000

6330 M/C3VL2071

150

320

65

276

285

7.8

4300

2800

6330/C3VL2071

160

340

68

276

285

7.65

4000

3800

6332 M/C3VL2071

170

360

72

312

340

8.8

3800

3400

6334 M/C3VL2071

180

380

75

351

405

10.4

3600

3200

6336 M/C3VL2071

Insocoat bearings

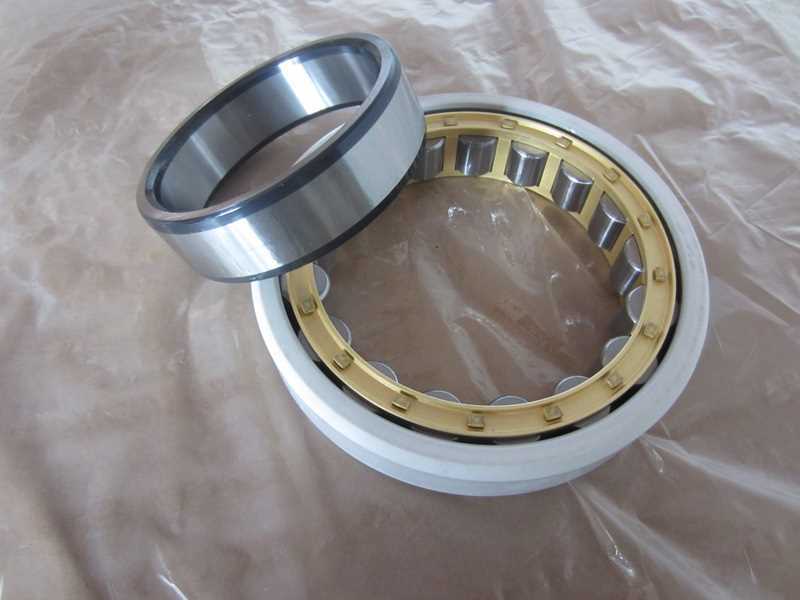

insulated bearings
