Insulating coating materials for insulating bearings
One of the main features of insulated bearings is a 50-200μm thick ceramic coating on the outer surface of the bearing, which performs the function of electrical insulation and can resist electrical jumping at 1000V, while thicker coatings can resist high voltage discharges above 1000V.
The process is constantly being improved and insulated bearings have a 100μm thick coating on the outer or inner ring surface that can withstand voltages of up to 1000V DC. A special coating process results in a coating of uniform thickness with extremely strong and uniform adhesion, which is then further treated to make it immune to the effects of moisture and humidity.
Classification and size range of insulated bearings

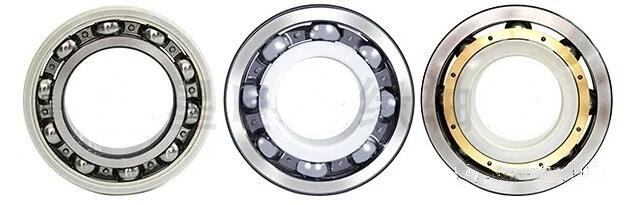

Deep groove ball bearings

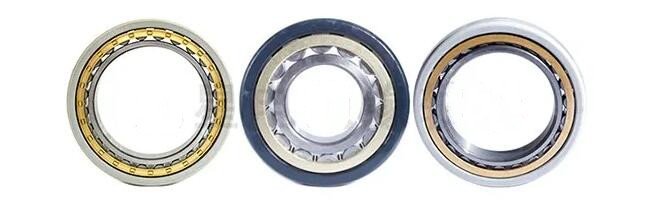

Cylindrical roller insulated bearings

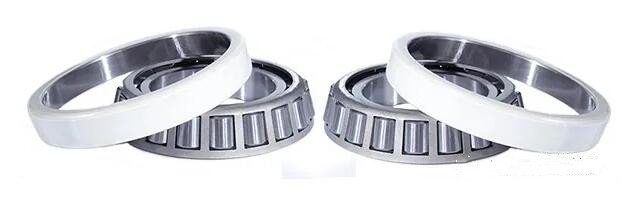

Tapered roller insulated bearings
The size range of insulated bearings
Electric insulated deep groove ball bearings
Inner diameter size range: 40mm～140mm
Outer diameter size range: 80mm～300mm
Width size range: 18mm～62mm
Electrically insulated cylindrical roller bearings
Inner diameter size range: 45mm～140mm
Outer diameter size range: 100mm～300mm
Width size range: 25mm～62mm
